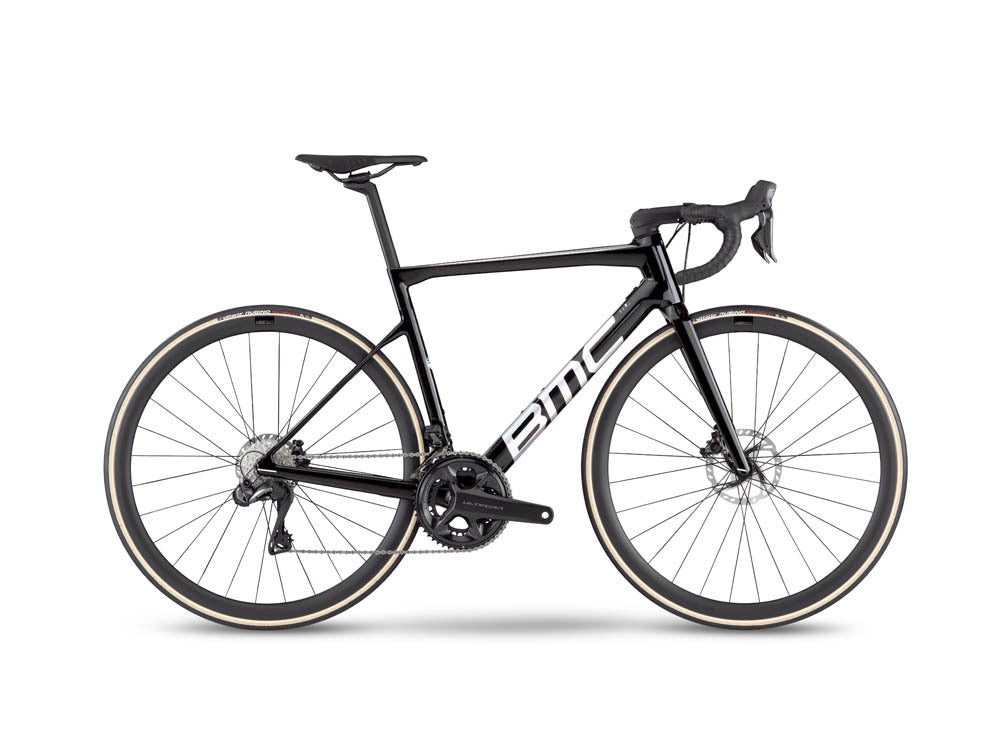

2022 BMC Teammachine SLR ONE w 12-Speed Ultegra R8100 Di2

Key Features

• Shimano Ultegra Di2 Drivetrain
• CRD-351 Carbon Wheelset
• ICS1 Integrated Cockpit Design and Carbon D-Shape Seatpost

The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. The Teammachine SLR ONE’s superb specification includes an ICS1 stem, D-Shape carbon seatpost, Shimano’s new Ultegra Di2 12-speed groupset, and 35mm CRD-351 Carbon tubeless ready wheels.

Specifications

FRAME

Teammachine SLR Carbon with Aerocore Design

• Stealth Dropout Design

• TCC Race Compliance Level

• PF86 Bottom Bracket

• Integrated Seatpost Clamp

• Flat Mount Disc

• 12x142mm Thru-Axle

• Optimized for Aerocore Bottle Cages

FORK

Teammachine SLR Carbon

• TCC Race Compliance Level

• Internal Cable Routing

• Flat Mount Disc

• Stealth Dropout Design

• 12x100mm Thru-Axle

• 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)

CRANKSET

SHIMANO Ultegra 52-36T

CASSETTE

SHIMANO Ultegra 11-34T

CHAIN

SHIMANO Ultegra

FRONT DERAILLEUR

SHIMANO Ultegra Di2

REAR DERAILLEUR

SHIMANO Ultegra Di2

SHIFTERS

SHIMANO Ultegra Di2

BRAKES

SHIMANO Ultegra, RT-MT800 Rotors (160/140)

HANDLEBAR

BMC RAB 02, Ergo Top Shape, Compact Bend

STEM

BMC ICS1 - Integrated Cockpit Design

SEATPOST

Teammachine SLR Carbon D-Shaped Seatpost

• 15mm Offset

SADDLE

Fizik Antares R7

HUBS

CRD-351

RIMS

CRD-351 Carbon, Tubeless Ready, 35mm

TIRES

Vittoria Rubino, 25mm

TIRE CLEARANCE

30mm (Measured Width)

WEIGHT

7.73kg / 17.04lb

ASTM CLASSIFICATION

Level 1

Geometry

Size	47	51	54	56	58	61
Rider Height CM	<166	166-174	172-180	178-186	184-192	>190
Stack MM	506	530	550	565	584	608
Reach MM (reach)	367	377	386	392	401	409
Seat Tube MM (st)	423	468	504	524	545	574
Top Tube MM (tt)	517	534	549	559	574	589
Head Tube MM (ht)	110	130	145	165	184	210
Seat Tube Angle (sa)	73.5	73.5	73.5	73.5	73.5	73.5
Head Angle (ha)	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center MM (rc)	410	410	410	410	410	410
Front Center MM (fc)	568	586	589	599	614	630
Wheelbase MM (wb)	968	986	989	1000	1015	1030
BB Drop MM (drop)	69	69	69	69	69	69
Fork Length MM (fl)	368	368	368	368	368	368
Fork Rake MM (fr)	48	48	43	43	43	43
Trail MM (trail)	63	63	63	63	63	63
Crank Length MM	170	170	172.5	172.5	175	175
Stem Length MM	90	90	100	110	110	120
Stem Angle	-12.5	-12.5	-12.5	-12.5	-12.5	-12.5
Bar Width MM	400	420	420	420	420	440
Bar Drop MM	125	125	125	125	125	125
Bar Reach MM	70	70	70	70	70	70
Post Offset MM	15	15	15	15	15	15
Standover Height mm	717	752	779	797	817	843
Seatpost Length MM	330	380	380	380	380	380
