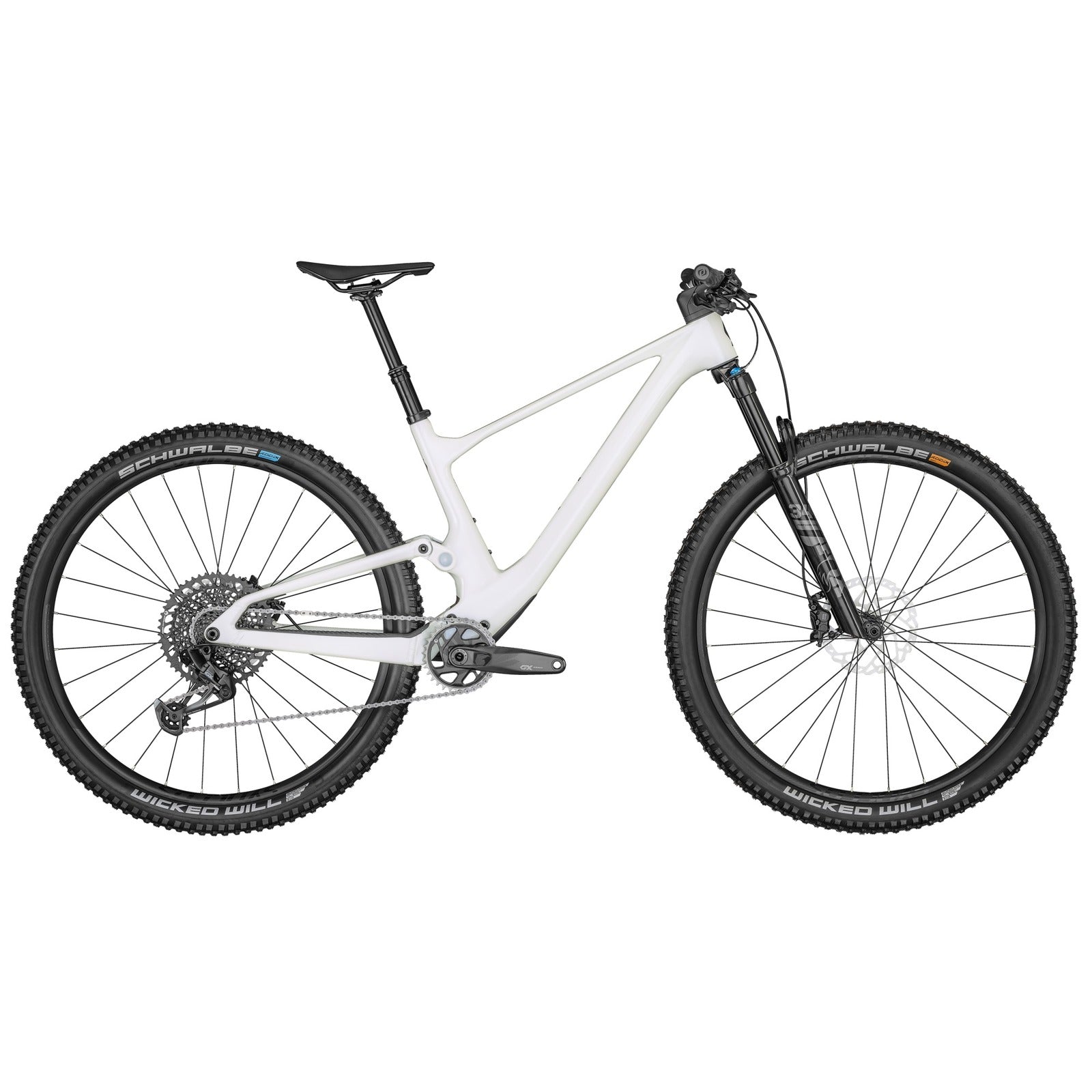

2022 Scott Spark 920 Dual Suspension MTB

Key Features:

• Spark Carbon HMF-Alloy Frame
• FOX 34 Float Perf. 130mm Fork
• FOX Nude 5T EVOL, TwinLoc, 120mm
• SRAM GX Eagle 12 Speed
• Shimano SLX 4 Piston Disc Brakes
• Syncros Silverton 2.5 TR Wheels
• Schwalbe Wicked Will Tires
• Syncros Dropper Post and Parts

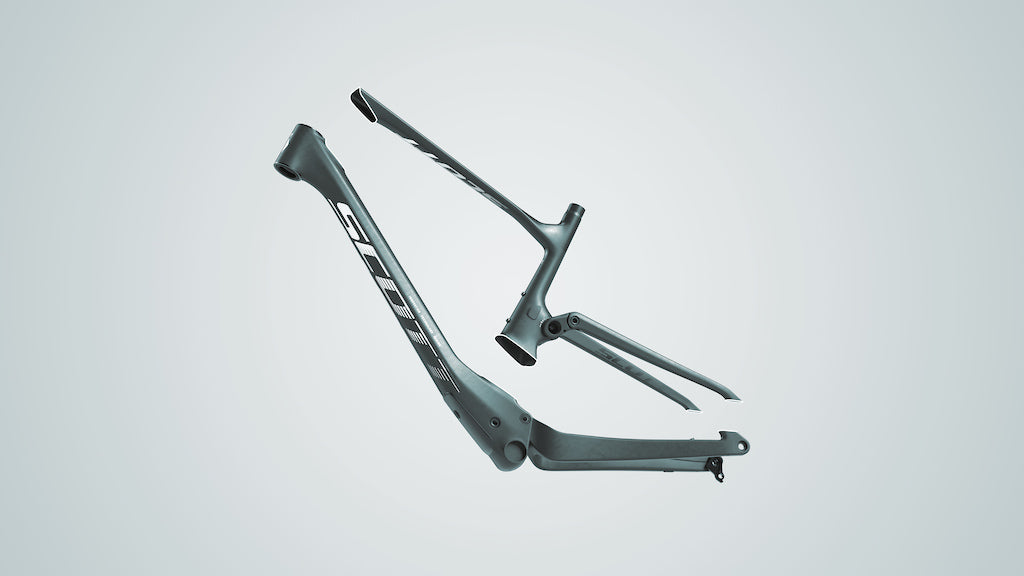

Frame:

• Spark Carbon HMF Mainframe with Alloy 6011 Swingarm

• Integrated Suspension Technology

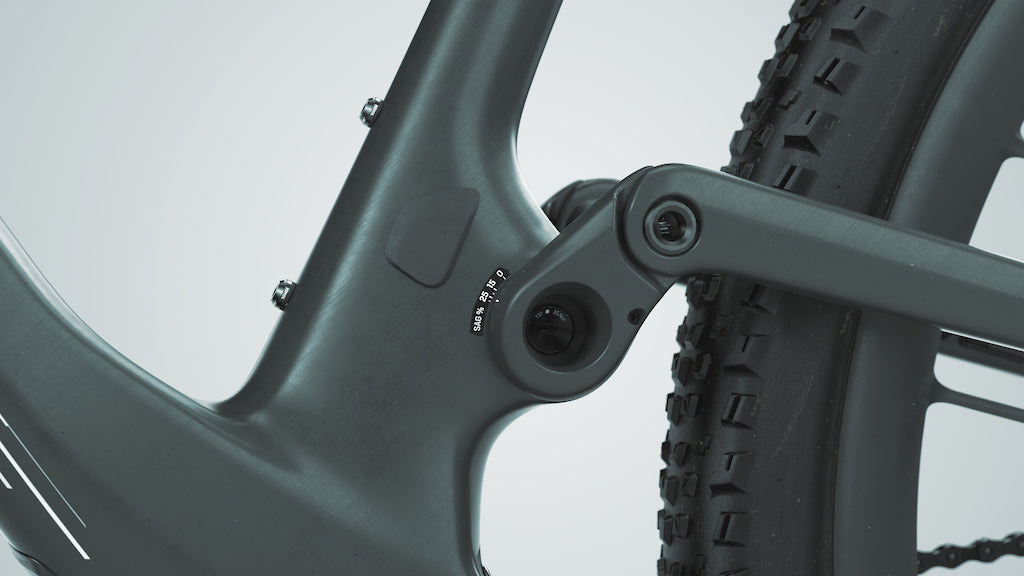

• Flex Pivot / Adjustable head angle

• Syncros Cable Integration System

• BB92 / UDH Interface / 12x148mm with 55mm Chainline

Fork:

• FOX 34 Float Performance Air Grip 33-Modes

• Kabolt 15x110mm axle

• Tapered steerer 44mm offset

• Lockout 130mm travel/Lockout

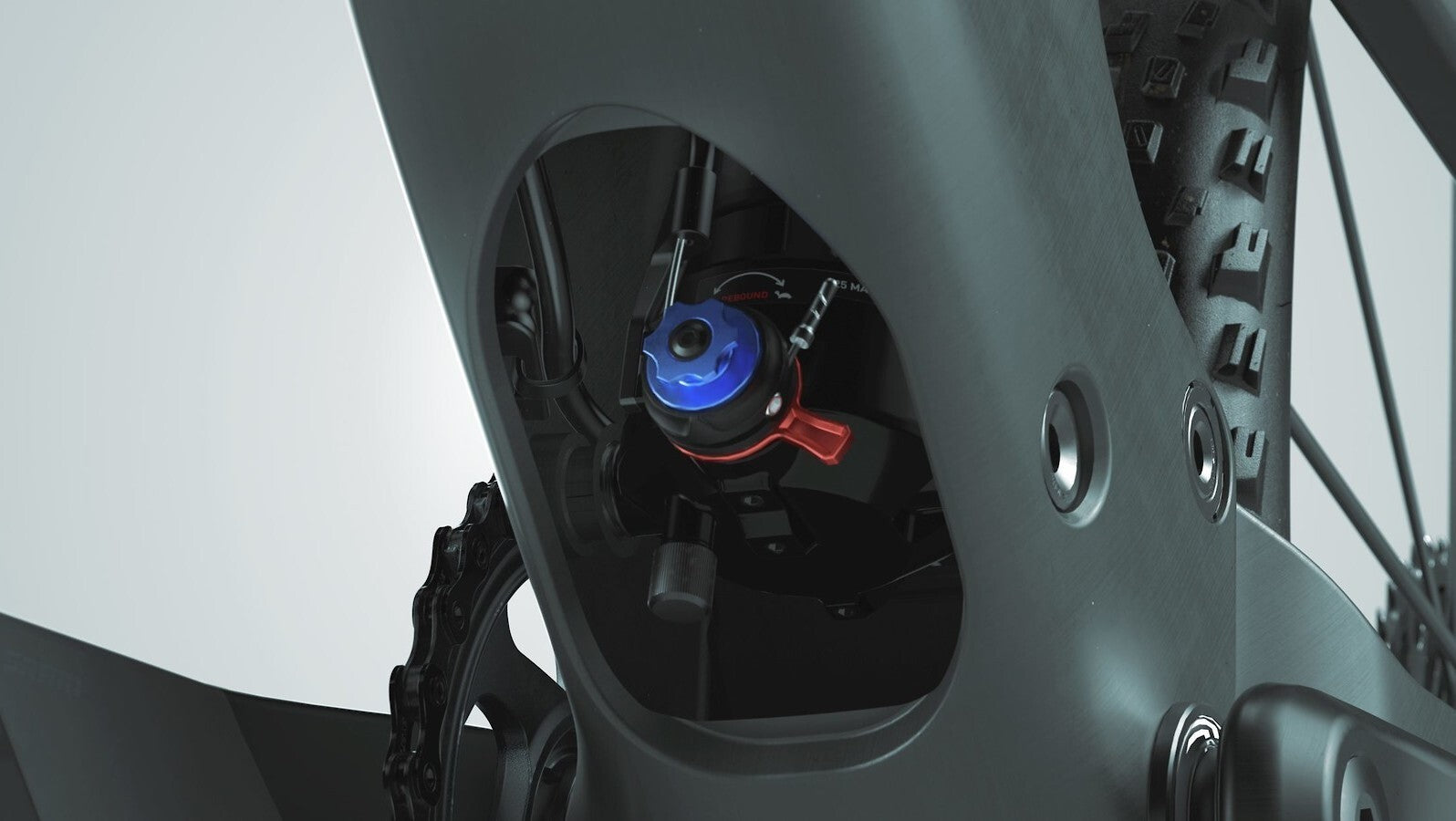

Rear Shock

• FOX NUDE 5T EVOL Trunnion

• SCOTT custom w. travel / geo adj.

• 3 modes: Lockout-Traction, Control-Descend, Custom large Air volume

• Travel 120-80-Lockout / T165X45mm

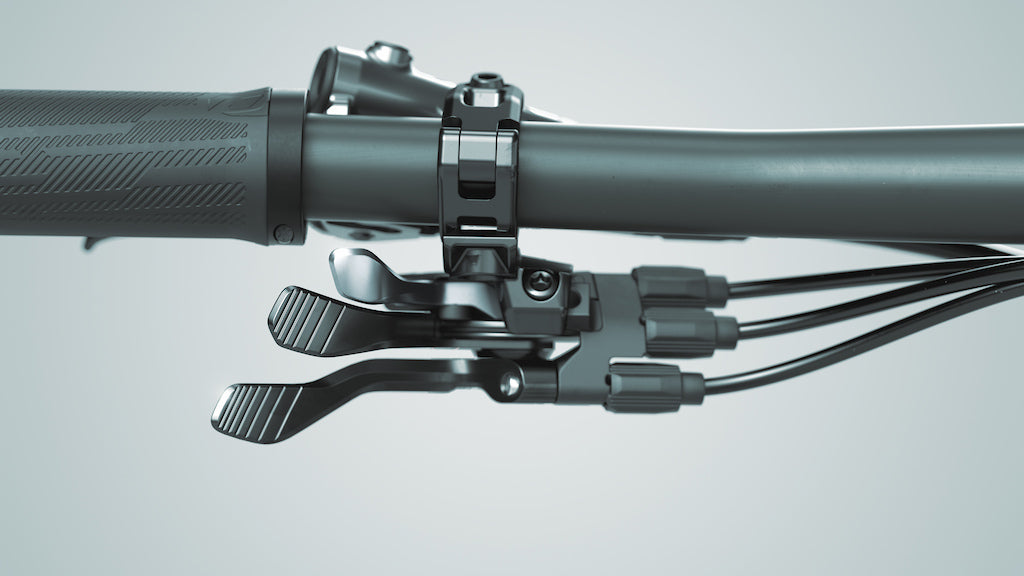

Remote System:

• SCOTT TwinLoc 2 Technology
  Suspension & Dropper Remote
  3 Suspension modes

Rear Derailleur:

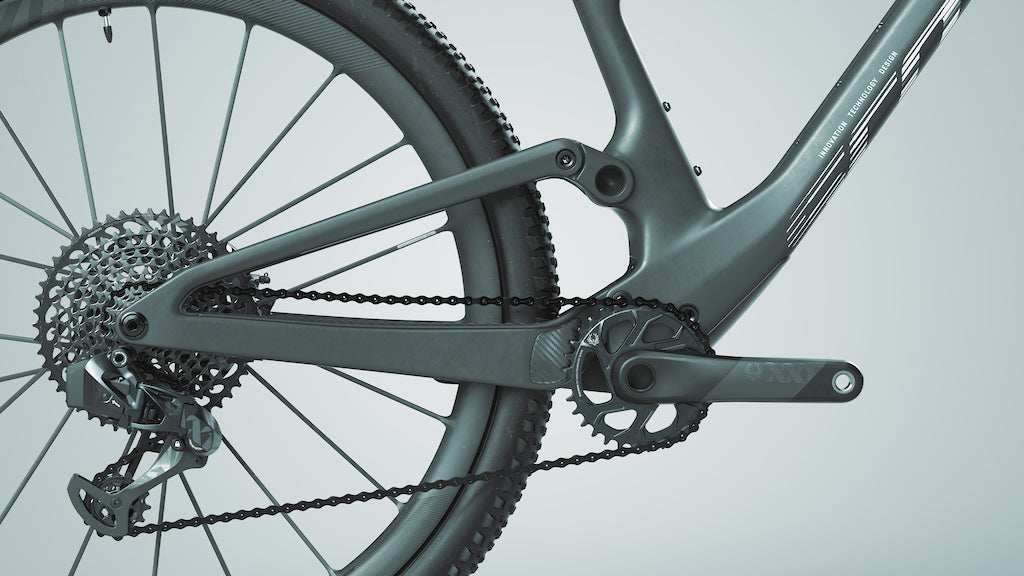

• SRAM GX Eagle 12 Speed

Shifters:

• SRAM GX Eagle Trigger

Crankset:

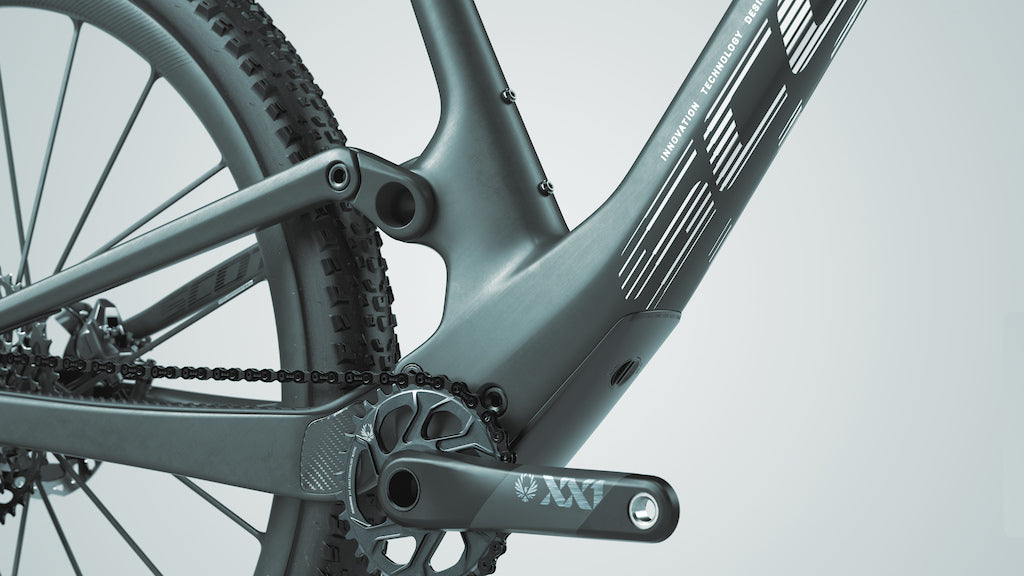

• SRAM GX Eagle DUB
  55mm CL / 32T

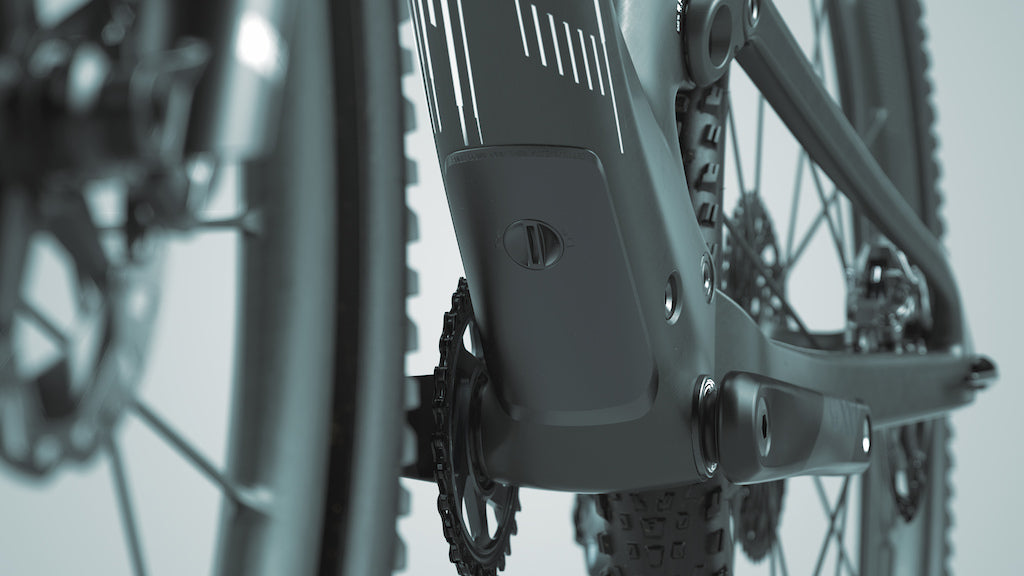

BB-Set:

• SRAM DUB PF 92 MTB Wide / shell 41x92mm

Chain:

• SRAM CN NX Eagle

Cassette:

• SRAM XG1275 / 10-52 T

Brakes:

• Shimano SLX M7120 4 Piston Disc

Rotor:

• Shimano SM-RT66 / 6 Bolt / F&R 180mm

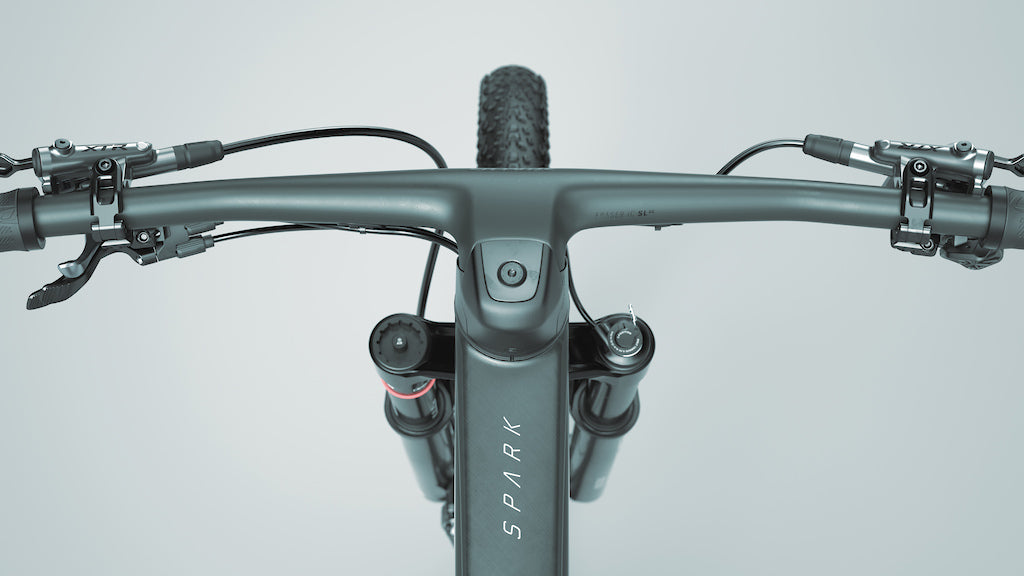

Handlebar:

• Syncros Fraser 1.5 DC Alloy 7075 D.B.
  mini Rise / back sweep 8° / 760mm
  Syncros Pro lock-on grips

Headstem:

• Syncros DC 1.5
  Syncros Cable Integration System
  0° rise / 7050 Alloy / 31.8mm / 1 1/8"

Seatpost:

• Syncros Duncan Dropper Post 2.0
  31.6mm / S & M size 125mm / L & XL size 150mm

Seat:

• Syncros Tofino 2.0 Regular
  CRMO rails

Headset:

• Syncros - Acros Angle adjust & Cable Routing HS System

• +-0.6° head angle adjustment

• ZS56/28.6 – ZS56/40 MTB

Wheelset:

• Syncros Silverton 2.5-30 6 Bolt

• F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim 28H XD Driver

• Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

Front Tire:

• Schwalbe Wicked Will 29x2.4" EVO
  Super Race / TLE / 67EPI / Addix Speed Soft

Rear Tire:

• Schwalbe Wicked Will 29x2.4" EVO
  Super Race / TLE / 67EPI / Addix Speed Grip
