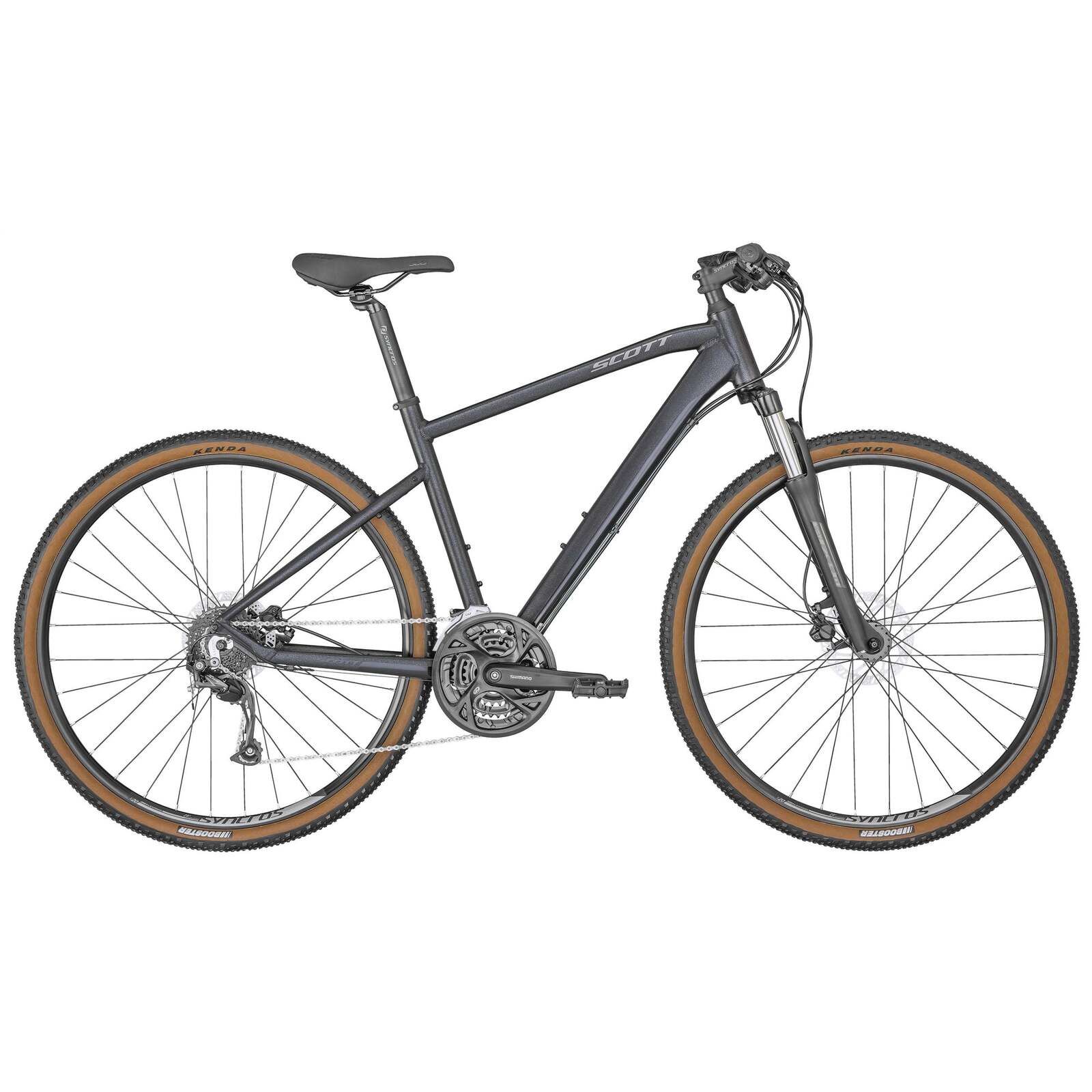

2023 Scott Sub Cross 40 Men's Hybrid Bike

The Scott Sub Cross 40 emphasizes comfort and convenience for touring and transportation. The SUB Cross is set up perfectly for your excursions.

Key Features

• Sub Cross Men/Lady Alloy Frame
• Zoom 187 D 63mm Fork
• Shimano Altus M2000 27 Speed
• Tektro Hyd. Brakes
• Kenda Booster

Specifications

HANDLEBAR

Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend

HEADSET

Syncros OE Press Fit / 1 1/8 OD 50mm / ID 44mm

PEDALS

Feimin FP-873-ZU

SADDLE

Syncros UC3.0 / UC3.0W

SEATPOST

Syncros 3.0 / 31.6mm / 350mm / Black

STEM

Syncros 3.0 / 7° / Black

BOTTOM BRACKET

Feimin FP-B908N / Cartridge Type

BRAKES

Tektro HDM275 Hydr. Disc

BRAKES ROTOR

Tektro / 6 bolts / F&R 160mm

CASSETTE

Shimano CS-HG200-9 11-32 T

CHAIN

KMC X9

CRANKSET

Shimano FC-M371-L / 48x36x26 / w/CG

FRONT DERAILLEUR

Shimano FD-M370 / 34.9mm

REAR DERAILLEUR

Shimano Altus RD-M2000 / 27 Speed

SHIFTERS

Shimano SL-M2010-9 / R-fire plus / w/gear indicator

FRAME

Sub Cross Alloy 6061 / Custom butted tubing / Sub Cross Men/Lady geometry / SCOTT urban kit ready

SHOCK

Zoom 187 D / 63mm travel

APPROX. WEIGHT

13.64

FRONT HUB

Formula DC-19 FQR Disc

FRONT TYRE

Kenda Booster / 700x45C / 30 TPI

REAR HUB

Formula DC-25 RQR Disc

REAR TYRE

Kenda Booster / 700x45C / 30 TPI

RIMS

Syncros X-20 Disc / 32H / black

SPOKES

14g / stainless / black

Geometries

								S		M		L		XL		XXL
A	head tube angle							70.0 °		70.0 °		70.0 °		70.0 °		70.0 °
B	head tube length							105.0 mm		125.0 mm		145.0 mm		165.0 mm		185.0 mm
C	top tube horizontal							567.0 mm		577.0 mm		592.0 mm		608.0 mm		620.0 mm
D	standover height							767.0 mm		793.0 mm		817.0 mm		847.0 mm		876.0 mm
E	BB offset							56.0 mm		56.0 mm		56.0 mm		56.0 mm		56.0 mm
F	BB height							406.0 mm		406.0 mm		406.0 mm		406.0 mm		406.0 mm
G	wheel base							1,078.0 mm		1,084.0 mm		1,097.0 mm		1,110.0 mm		1,123.0 mm
H	BB center to toptube center
I	BB center to top of seattube							450.0 mm		480.0 mm		510.0 mm		550.0 mm		590.0 mm
J	seat angle							73.0 °		72.5 °		72.3 °		72.0 °		72.0 °
K	chainstay							456.0 mm		456.0 mm		456.0 mm		456.0 mm		456.0 mm
L	reach							388.3 mm		386.8 mm		393.5 mm		399.8 mm		405.6 mm
M	stack
N	stem length							80.0 mm		90.0 mm		90.0 mm		100.0 mm		100.0 mm
0	trail
