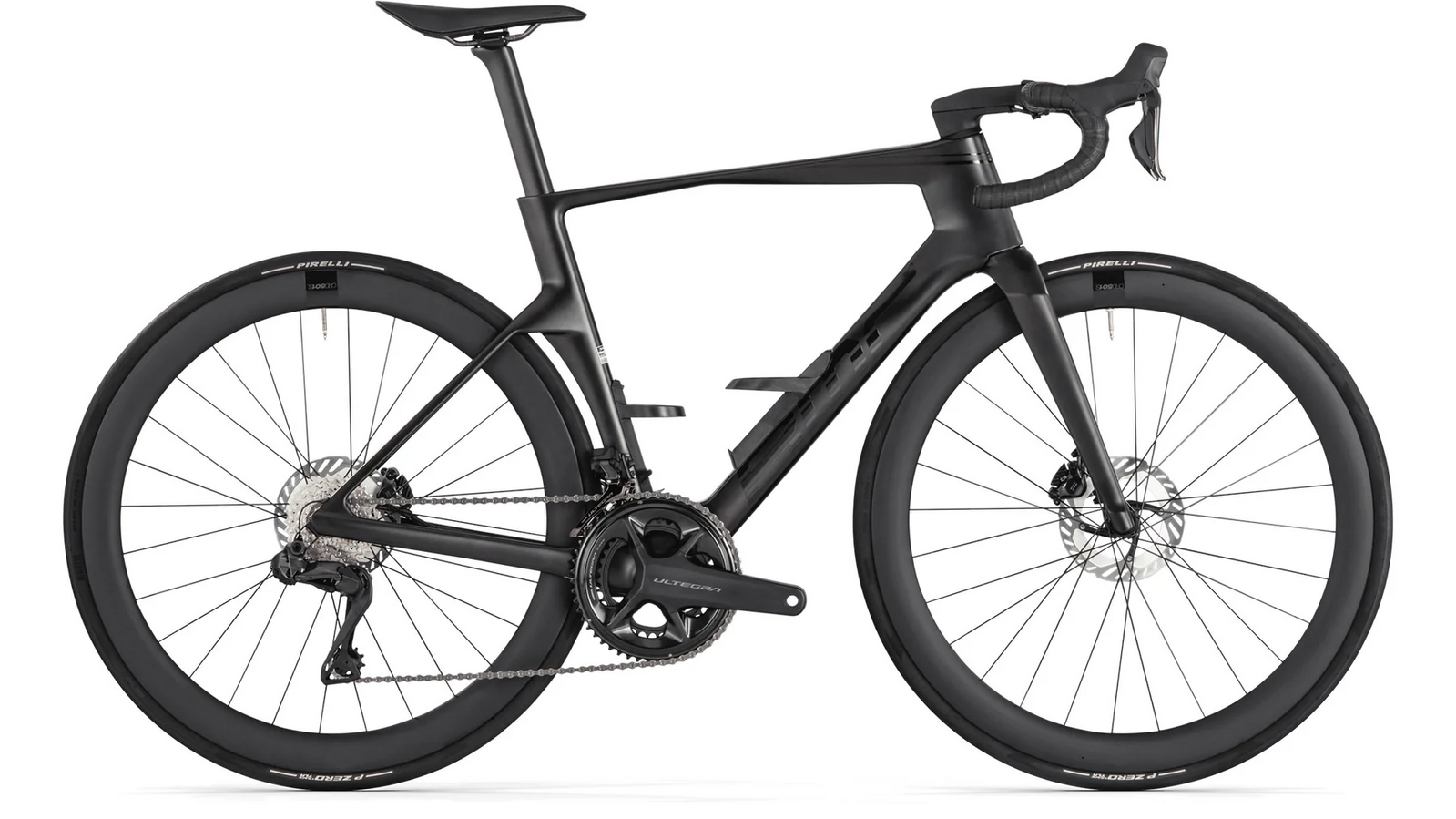

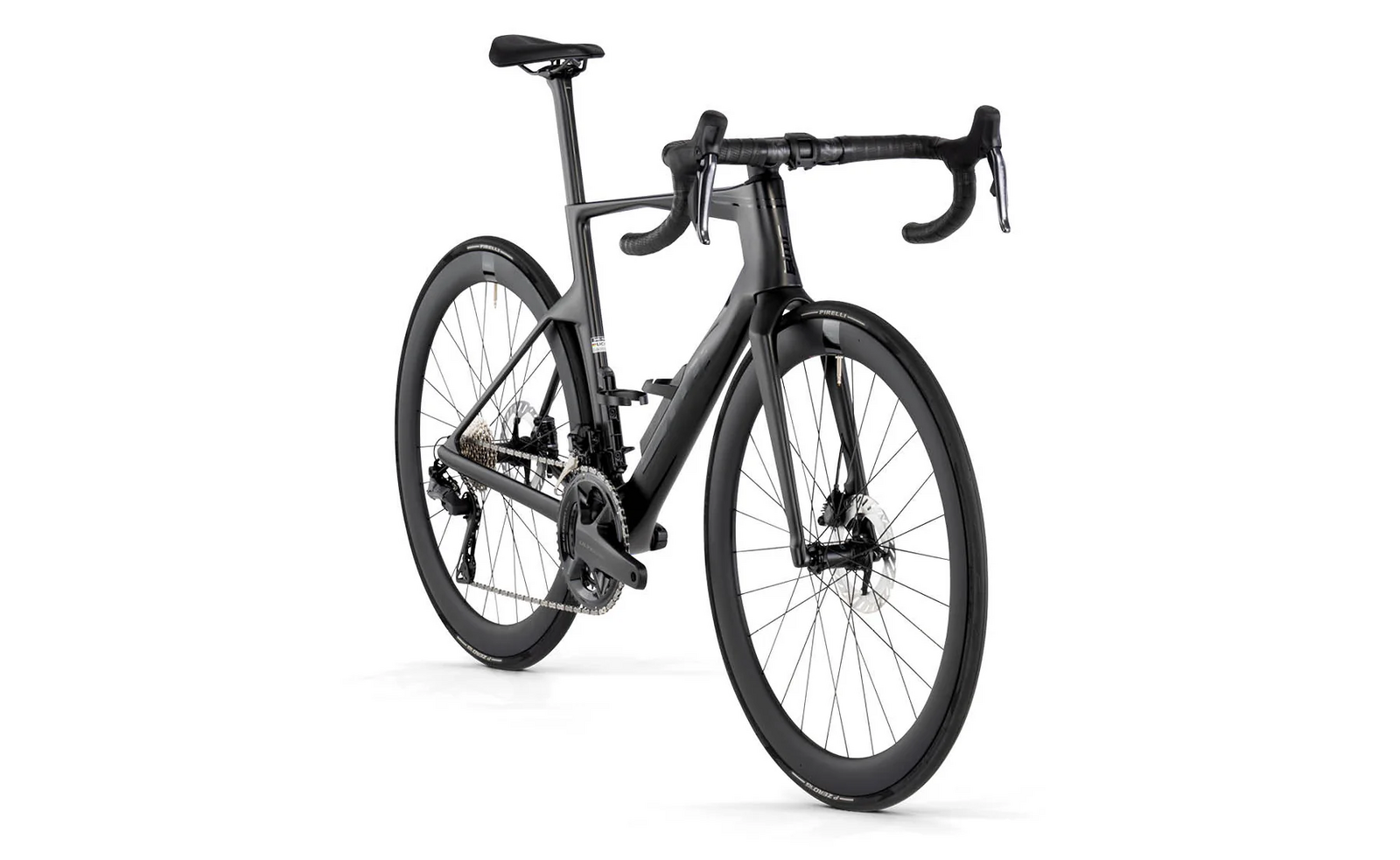

2024 BMC Teammachine R01 FOUR Road Racing Bike w Ultegra 8100

$13,748.90

Size:

L (56cm)

Variant

Forged on the slopes of the Swiss Alps. Hardened over the cobbles of Spring Classics. Perfected within the echelons of the Grand Tours. Developed in collaboration with Red Bull Advanced Technologies the Teammachine R isn’t just another race bike. With the Teammachine R 01 FOUR finished off with the Shimano Ultegra Di2 drivetrain including powermeter, CRD-501 Carbon Wheelset and BMC’s ICS2 Integrated Cockpit Design.

Key Features

Shimano Ultegra Di2 Drivetrain with Powermeter
CRD-501 Carbon Wheelset
ICS2 Integrated Cockpit Design

Geometry

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Reach	76.9	76.9	76.9	76.9	76.9	76.9
Bar Width	400	420	420	420	420	440
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	185	211
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	74	74	73.5	73.5	73	73
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Stem Angle	-6	-6	-6	-6	-6	-6
Stem Length	90	100	100	110	110	120
Top Tube	522	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030

For an in-depth overview of all the new features of the BMC Teammachine R01 TWO, head over to BMC's product page.
