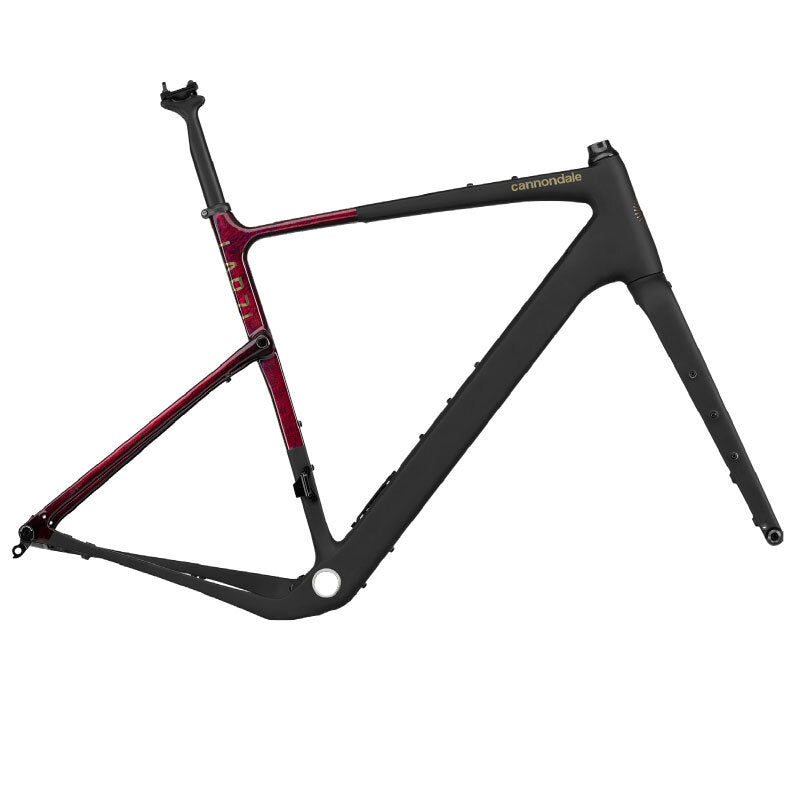

Cannondale Topstone Lab71 Gravel Bike Frameset

Nothing is Impassable.

The gravel bar has been raised.

The LAB71 Topstone Frameset takes the performance and versatility of our Topstone Carbon platform to the next level.

Key Benefits ˓

Fine-tuning the Fine-tuned

The LAB71 Topstone carbon frameset gets more from ˓ less. We took the Topstone Carbon frameset and pushed it to the next level, with a ˓ special carbon lay-up that drops over 160g but preserves its toughness, versatility, and performance. Just when you thought Topstone couldn’t get any better... ˓

Looking Closer

LAB71 elevates aesthetics to the level of the engineering. Look as ˓ closely as you want at the LAB71 Topstone frameset, and the stunning finishes and ˓ meticulous attention to detail won’t escape you. The only way to make it look better is to add a little dirt. ˓

King of Comfort

The Kingpin suspension system offers up to 30mm of bump- ˓ smoothing, traction-increasing suspension travel at the rear wheel, and it does so ˓ without the weight or complexity of shocks or linkages. The result? More comfort, more control, and more fun. ˓

Get Loaded

Topstone’s always down for a good time. You’ve got the space and ˓ flexibility to set up Topstone Carbon for the long haul, or just a big haul. Multiple gear ˓ mounts both above and below the downtube, on the seat tube, on the top tube, and on both blades of the fork give you endless configurations for storage.

Key Features

• Category - Road/Gravel
• Travel - R~30mm
• Max Tyre Size - 700x45mm

Specifications

Frame

LAB71 Topstone Superlight Series 0 Carbon Construction, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thruaxle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts

Fork

LAB71 Topstone Superlight Series 0 Carbon Construction, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thruaxle, triple bottle/gear mounts, fender mounts

Headset

Integrated, 1-1/8" - 1-1/2"

Seatpost

SAVE Carbon SmartSense, 27.2, 350mm (XS-L), 400mm (XL)

Sizes

XS, S, M, L, XL

Colour

Jet Black (Satin) w/ Marble Oxblood (Gloss) and Smoke Brushed Chrome (MOX)

Extras

StrapRack Tool/Stuff Carrier, Front and Rear Thru-axles
