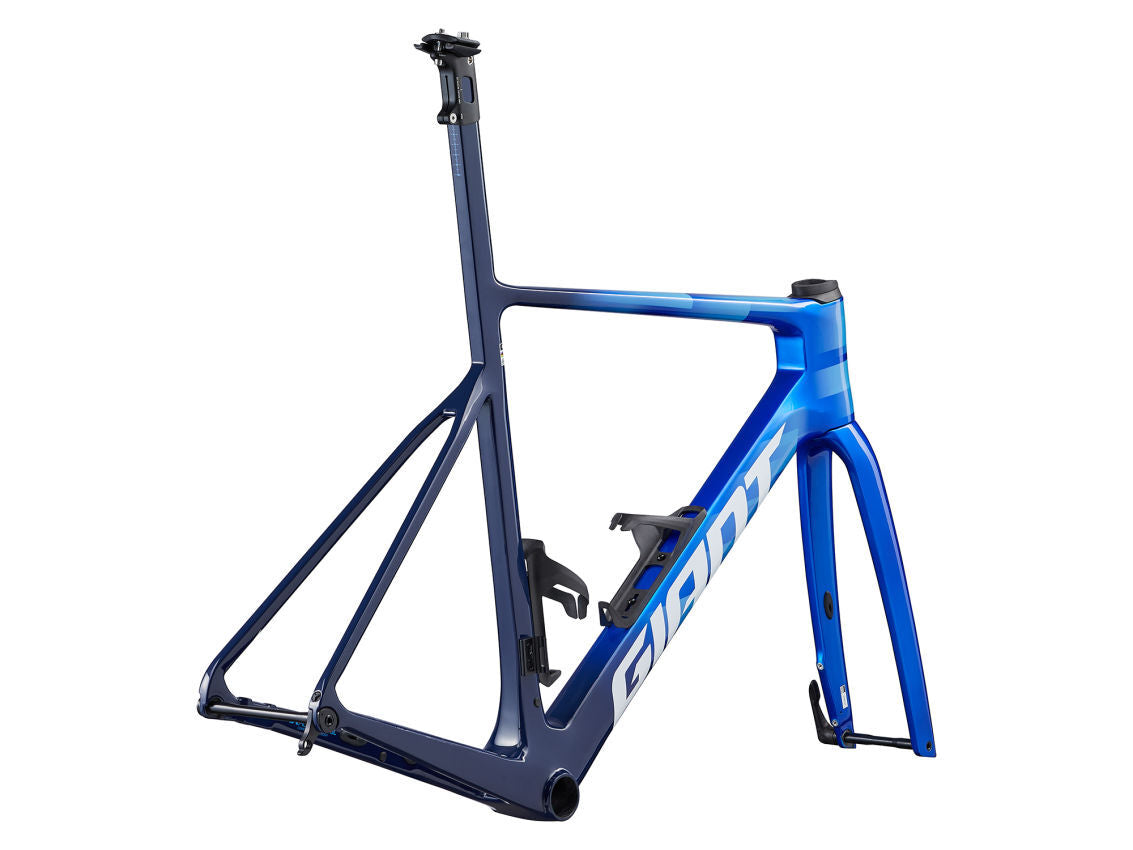

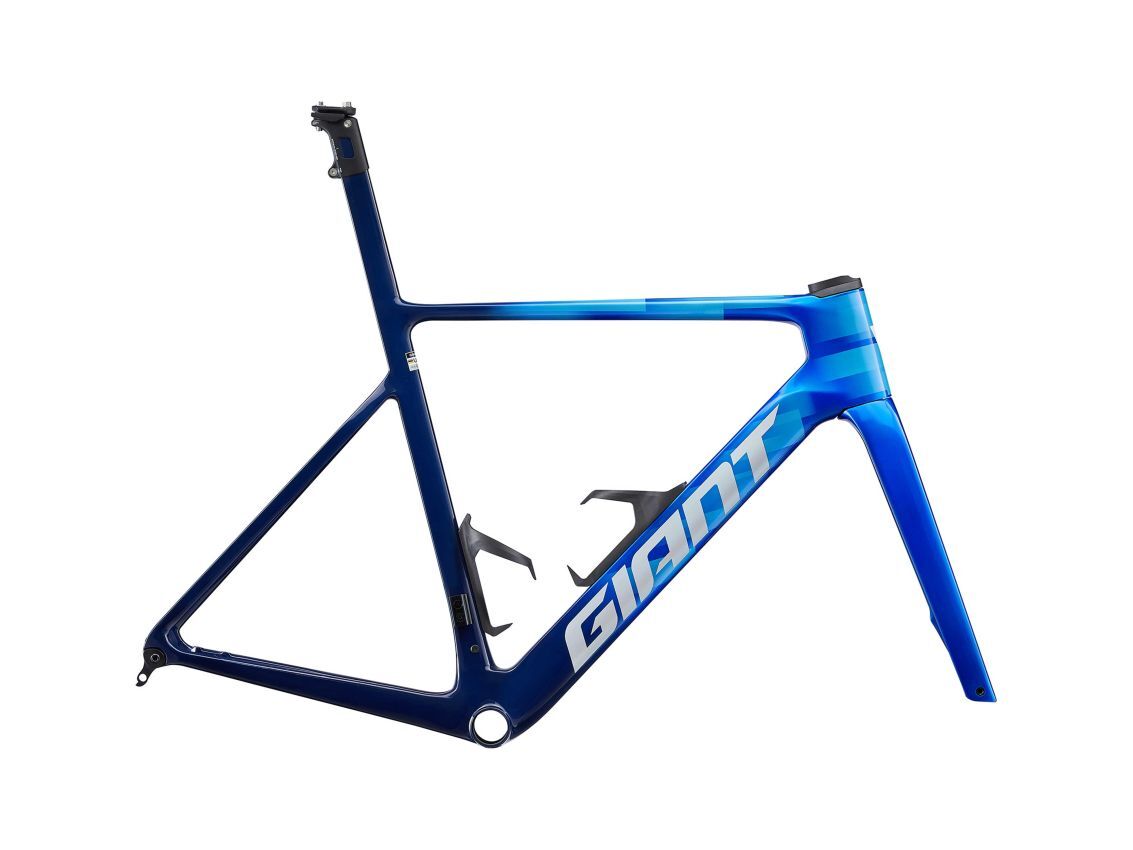

Giant Propel Advanced SL Team Frameset
Unleash Your Sprint With 200m To Go. Close a gap, Chase Back, Launch A Solo Attack. This New Aero Road Machine Is Made For The Moments That Count. More Aero, More Adjustable, More Ways to Win.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.
Easier adjustability
All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
.png)
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 710 | 740 | 770 | 800 | 830 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (mm) | 535 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH (mm) | 130 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL (mm) | 62.5 | 57.8 | 57.8 | 57.8 | 57.8 |
| H | WHEELBASE (mm) | 977 | 980 | 991 | 1006 | 1020 |
| I | CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP (mm) | 70 | 70 | 67 | 67 | 67 |
| K | STACK (mm) | 528 | 545 | 562 | 581 | 596 |
| L | REACH (mm) | 383 | 388 | 393 | 402 | 412 |
| M | STAND OVER HEIGHT (mm) | 755 | 775 | 794 | 821 | 834 |
| O | STEM LENGTH (mm) | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
Specifications
-
Sizes
S, M, M/L, L, XL
-
Colours
Cobalt/Dark Blue
-
Frame
Advanced SL-Grade Composite, integrated seatpost, disc
-
Fork
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
-
Seatpost
Advanced SL-Grade composite, integrated design, -5/+15mm offset
-
Bottom Bracket
BB86 accepts press fit style BB only, bearing set not included
-
Extras
Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, Computer Mount, Bottle Cages
