Merida Team SL One Piece Cockpit w Out Front Computer/Light Mount

TEAM SL 1P COCKPIT

The Merida one-piece cockpit is a key part of the aero improvements of their new SCULTURA CF5 models.

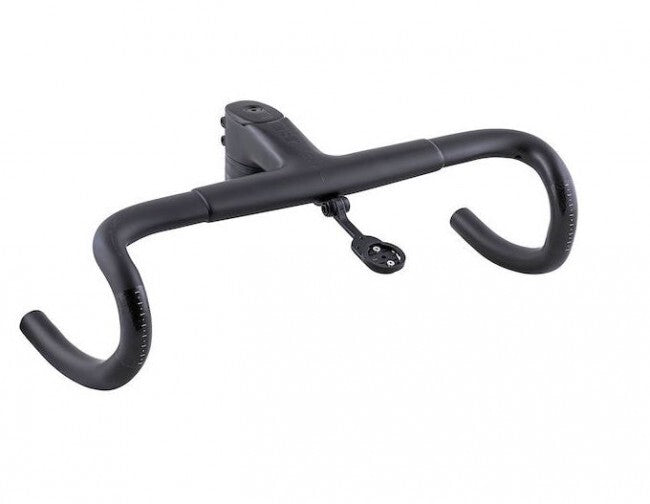

The full carbon one-piece handlebar-stem combination that is exclusively fitted to the SCULTURA 10K, TEAM and 9000 offers outstanding aerodynamics and weight savings (320 g) while giving the rider plenty of control. All cables run through internal lines in the cockpit for a sleek, uncluttered look that reduces drag. It also features our self-designed Garmin mount holder which offers two positions, is completely removable and can also be used as a GoPro mount.

WIRE PORT/CABLE INTEGRATION

One of the key elements of the new SCULTURA CF5 and CF3 framed models that further improves the aerodynamic performance is the complete cable integration, hiding all cables from view and wind exposure, generating a 2 watt saving (model depending). All cables run through the bar and stem and enter the frame through our WIRE PORT headset.

INTEGRATED SPACERS

Two-piece spacer design, that interlocks when clamped but can be separated when the stem is lifted or removed from the steerer. Spacers can be removed without the need to disconnect or cut cables and hoses, making setup fast and easy. The INTEGRATED SPACERS are fitted to the TEAM SL 1P COCKPIT in combination with the WIRE PORT headset on dedicated SCULTURA CF5 models.

FORCE DIFFUSER

The FORCE DIFFUSER is an integral part of the MERIDA TEAM SL 1P COCKPIT and drastically improves the fork steerer tube fatigue life. The metal sleeve of the FORCE DIFFUSER wraps around the carbon steerer in the clamping area and evenly spreads the load generated by the clamping process.
